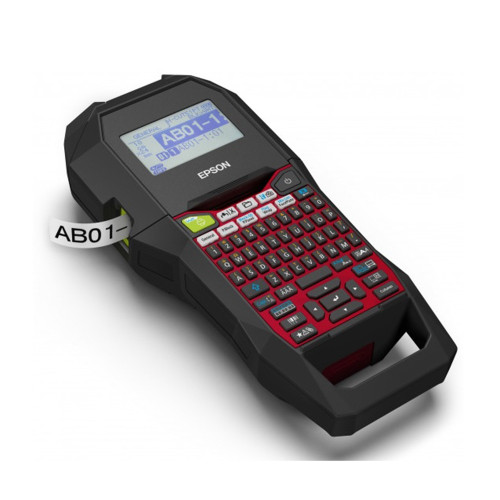

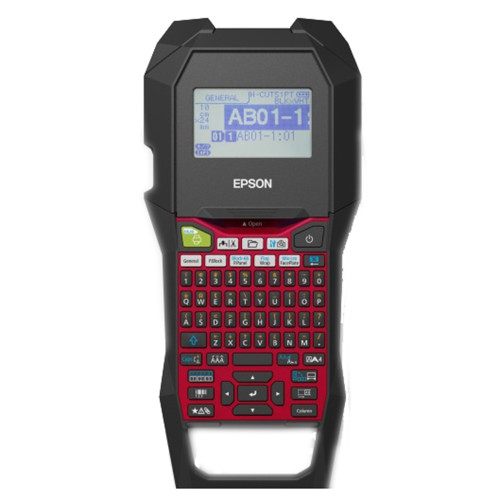

Epson LW-Z700FK Labelworks Printer

Destined to become a valuable tool for installers of mechanical, electrical and network IT equipment is this sturdy, practical and cost-effective industrial label maker. Featuring hot keys, a mixed label length function and other hands-free features, label-making on the LW-Z700FK is all about boosting productivity with the latest features, but at a competitive price.

Durable design

Aimed at tough environments, the LW-Z700FK has a hard carry case for valuable protection, while a large carry handle makes it mobile.

Easy to use

With tape detection, an automatic cutter and Drop Stop function, labelling cables, wiring, small pipes and other electrics or machinery has never been easier.

Professional results

As well as fast-printing in 180dpi quality, the bundled Epson Label Editor software makes it quick and simple to transfer a image of a company logo to the LW-Z700FK for using on cable labels, adding a professional touch.

Hands-free use

Hot keys cut-down on typing while repetitive jobs are streamlined thanks to its innovative Pick & Print feature, which automatically prints the next label in a pre-set series when it detects that the user has selected the previous label.

Plenty of choice

The LW-Z700FK offers six different widths from 4-24mm, and 100 label designs. Tapes are suited to all kinds of environments, with the addition of both magnetic and heat-shrink tape to a roster that already includes heat-resistant, glow in the dark, reflective and iron-on labels, among others.

Economic to run

With smaller margins and tapes up to 9m long, the LW-Z700FK achieves an impressively low total cost of ownership.

Printing

Printing technology :  Thermal transfer

Tape width :  4 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm

Printing resolution :  180 DPI

Printable Dot Numbers :  128 dot numbers

Print speed :  30 mm/sec

Number of printable lines :  8 lines / Custom

Maximum text length :  180 characters per line / Custom

Multi-block :  50 /  Custom

Drop Stop :  Yes

Pick & Print :  Yes

Print Settings

Special formats :  General, Punch Block, Patch Panel, Block-66, Wrap, Flag, Face Plate, Mix-Length

Repeat printing 2 - 99 / 1 - 999 (Label Editor (computer linked)

Auto increment :  0-9, a-z, A-Z, Up to 4 digits / Yes, 0-9, a-z, A-Z, Alphabetic, Numerical, Date, Time (Label Editor (computer linked)

Enlargement printing : Yes / Yes (Label Editor (computer linked)

Mirror printing :  Yes / Yes (Label Editor (computer linked)

Vertical printing :  Yes / Yes (Label Editor (computer linked)

Barcodes :  Code 128, Code 39, EAN-13, ITF, UPC-A, UPC-E /

 Coda bar (NW-7), Code 128, Code 39, Data Matrix, EAN-128, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, MaxiCode, PDF417, QR Code, UPC-A, UPC-E (Label Editor (computer linked)

Wire wrap :  Yes  / Yes (Label Editor (computer linked)

Flag :  Yes / Yes (Label Editor (computer linked)

Margin setting :  1mm, 3mm, 4mm, 10mm, width/3, width / 1mm, Manual, Auto (Label Editor (computer linked)

Fonts & Style

Fonts :  Roman, Sans serif / Depending on user's PC (Label Editor (computer linked)

Frames : 98 Frames

Tables :  3 Tables

Layout Alignment : Left, Right, Center, Justified / Left, Right, Center, Manual (Label Editor (computer linked)

Character spacing : Narrow, Wide, Normal

Character width : Narrow, Normal, Custom, Smaller, Small, Wide

Memory

Memory alphanumeric:  Depending on user's PC

Memory accent :  Depending on user's PC

Accent learning :  Yes

Symbols :  530 / 1,427 (Label Editor (computer linked)

Saved Label Design : 100 / Depending on user's PC / 372 templates available (Label Editor (computer linked)

Last label:  Yes / View history, Browse (Label Editor (computer linked)

Hardware

Cutter : Auto, Half

Detection : Cover open, Tape end, Tape type & colours, Tape width

Handle :  Yes

Power lamp :  Yes

Feed button :  Yes

Keyboard

Keyboard type : QWERTY

Number of keys : 66

Display

Display Resolution : 140‎ x 80 dots

Display backlight :  Yes( with control)

Display preview :  Yes Graphic

Display language :  Danish, Dutch, English, Finnish, French, German, Italian, Portuguese

Other Function

Auto power off :  Yes

Unit switch :  mm/inch / mm/inch (Label Editor (computer linked)

Clock :  No

Genaral

Batteries :  6 x AAA, Not included

Battery :  Li-ion

Low battery indicator :  Yes

Product dimensions :  136‎ x 298 x 90 mm (Width x Depth x Height)

Product weight :  1,100 g, without tape & batteries

Colour :  Black, Red

Connectivity

Interfaces : USB 1.1 Type A, USB 1.1 Type B

Compatible Operating Systems :  Windows 10, Windows 7, Windows 8.1

System requirements :  Approx. 100 MB HDD space

PC Display requirements :  XGA (1024 x 768) or Higher

Included Software :  Epson Label Editor

Warranty - 36 months carry in
